  • Multi layer complex filter which is mostly used filters through multiple filtering layers. But it has relatively low filtering capability comparing to its size, so there is a difficulty to manage water quality
  • Pressurization filter effectively eliminates particle material in water up to less than 1㎛ by perfect physical method of construction. Also, it doesn’t block the filter bag and uses minimum filter media by instant coating technology, so it reduces waste dramatically. This is the unique technology in Korea

  • It works with various filter media and provides wide range of application
  • Precision filtration is available with high filtration uniformity
  • It could treat big amount of water. It is portable, small and light
  • Advanced water treatment is available based on filter media
  • Easy maintenance
  • Automatic operation

  • Insert filter media to multiple filter bags and form strainer
  • Inhale polluted water by circulating pump from the tank that contains polluted water
  • Filter by going through formed strainer
  • When there is cumulated sludge, it operates back washing
  • It restores to the original status after extracting sludge and filter media

  • It fixes filter cloth between every filter plate and inserts filter aid and spreads to filter bag
  • Pressurization filtering method

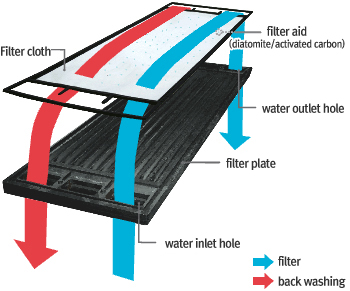

Its structural feature is to place filter cloth and filter aid membrane between horizontally stacked filter plates and penetrate water. Filtering and back flushing is performed in single direction so that the filter aid homogeneously laminated enhances efficiency of filter and allows rapid action against fast contamination.

  • High capacity water treatment field
  • The place rapid contamination of raw water takes place
  • Large Outdoor pool

  • Consisted of horizontally multi-plated filter plate
  • Homogeneous laminate of filter aid
  • Best water quality in short time
